LM Rail Bellow Cover

Price 1200.0 INR/ Unit

Get a Price/Quote

LM Rail Bellow Cover Specification

Media
Air, Water, Oil

Surface Treatment
Polish

Material

Usage
Industrial

Shape
Reducing

Color
As per requirement

LM Rail Bellow Cover Trade Information

Minimum Order Quantity
10 Number

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Per Month

Delivery Time
3 Days

Main Domestic Market
All India

About LM Rail Bellow Cover

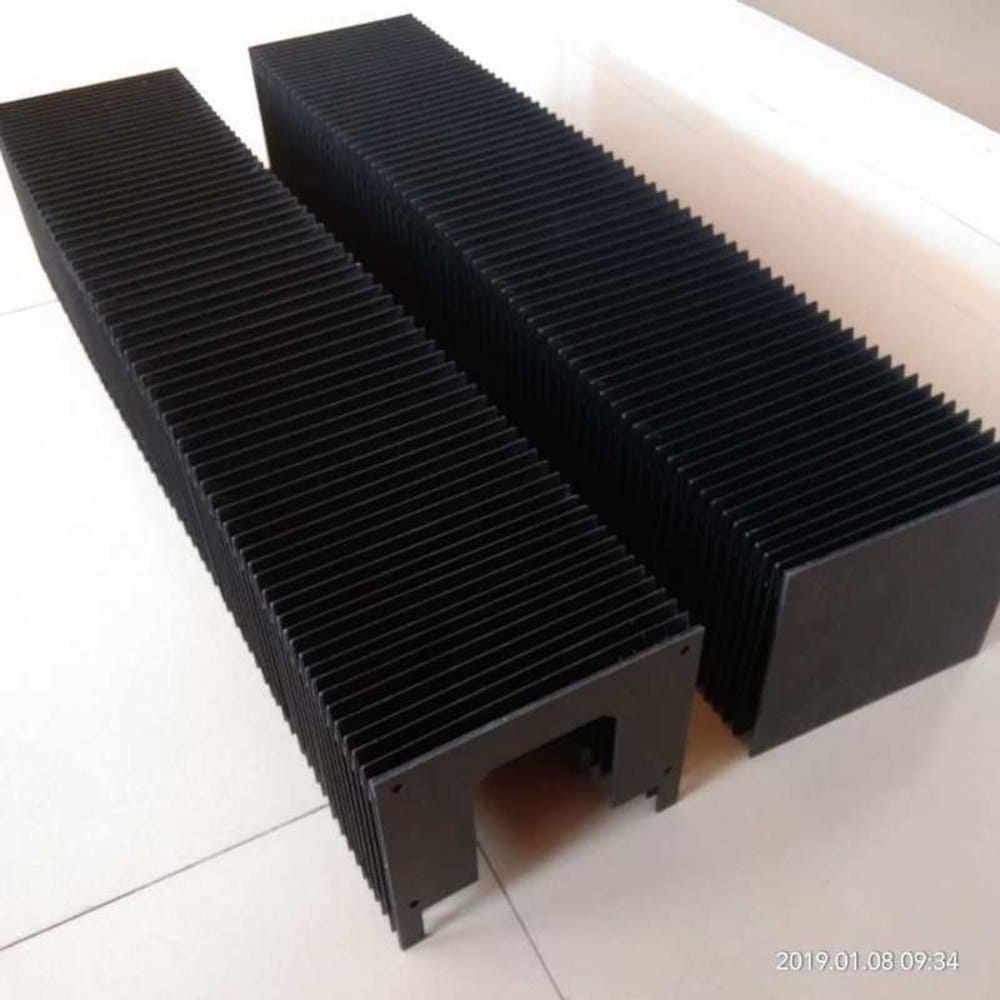

LM Rail Bellow Covers (also known as way covers or accordion bellows) are flexible, pleated enclosures designed to protect Linear Motion (LM) rails and guideways from environmental contaminants like dust, chips, oil, and coolant.

Core Function & Benefits

Protection: Shields precision surfaces from metal chips, swarf, abrasives, and chemical splashes.
Maintenance: Reduces cleaning frequency and prevents premature wear by keeping debris out of the bearings.
Safety: Encloses "pinch points" and moving components to prevent operator injury.
Longevity: Extends the service life of machines by maintaining the integrity of the linear guide system.

Technical Specifications

Materials: Common materials include high-quality Nylon, PVC-coated fabric, PU-coated fabric, and sometimes specialized heat-resistant materials like Aluminum-coated fabric or leather.

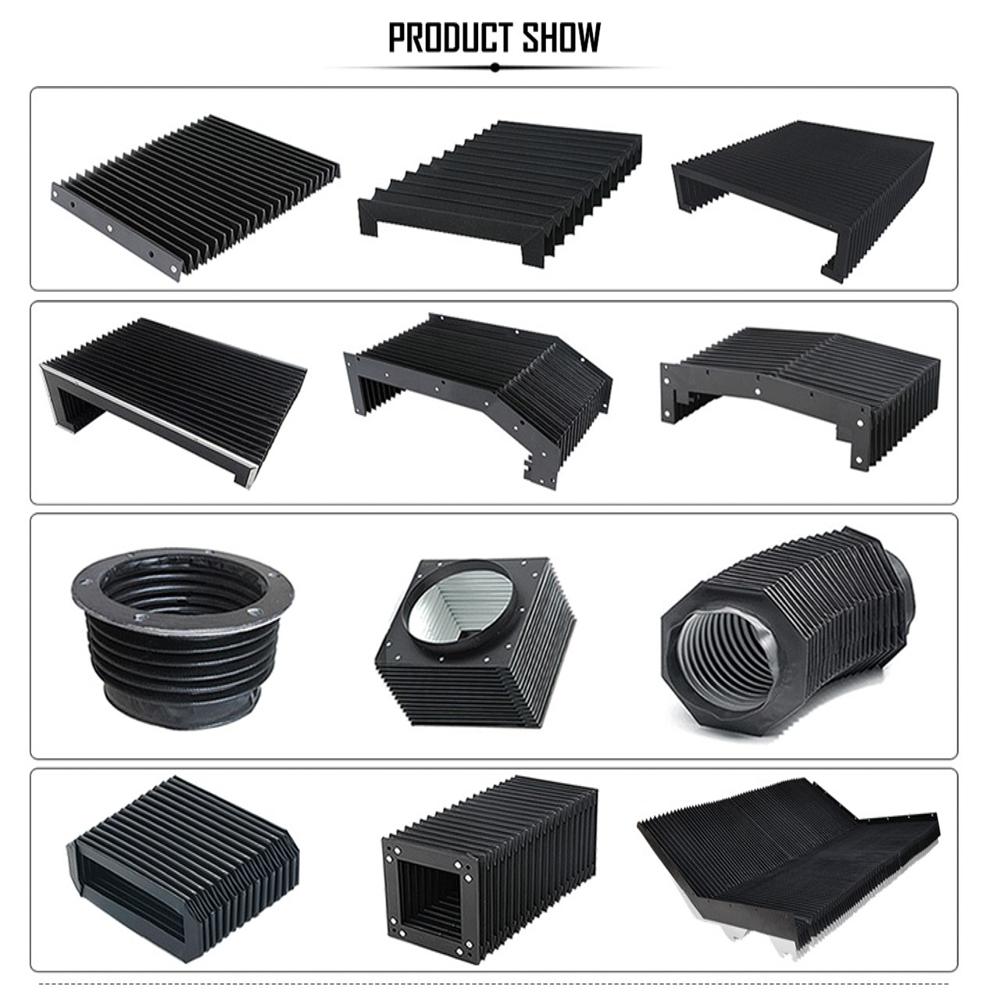

Shapes: They are typically customized into shapes like C-type (most common for rails), U-type, rectangular, square, or round.
Movement: Designed for high-speed travel (up to 120m/min) with unlimited cycles, ensuring minimal closed length for maximum machine travel.
Temperature Resistance: Standard covers handle 50C to 150C, while specialized variants can withstand up to 500C600C.

Common Applications

CNC Machinery: Essential for protecting rails in milling, lathe, and engraving machines.
Laser Systems: Specialized designs for fiber laser machines to resist sparks and heat.
Automation: Used in pick-and-place systems, medical equipment, and robotic gantries.
