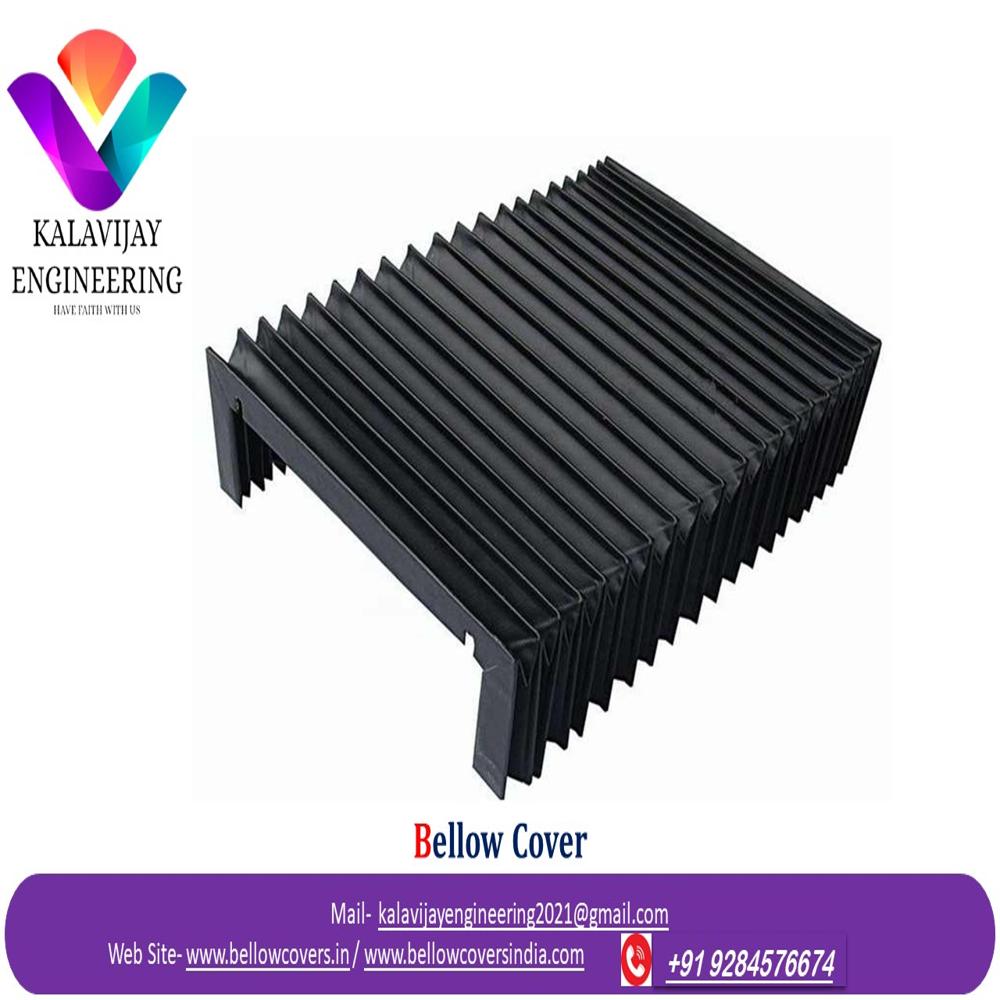

CMM Machine Bellow
3600.0 INR/Unit
Product Details:
- Media Dust, Coolant, Chips protection
- Surface Treatment Polish
- Head Code Square
- Max. Temperature 80C
- Flange Customized as per Machine
- Material Other
- Usage Laser Machines
- Click to view more
X
CMM Machine Bellow Price And Quantity
- 3600.0 INR/Unit
- 10 Number
- Black
- Yes
- CMM (Coordinate Measuring Machine) Protection
- Velcro/Hook & Loop Optional
- 1:7 Foldable/Extendable
- Yes
- Bolt-On/Clamp Fixing
- High
- Yes
- 0.8 mm - 1.5 mm
CMM Machine Bellow Product Specifications
- As per requirement
- Customized as per Machine
- Reducing
- Hot Press Molding
- Laser Machines

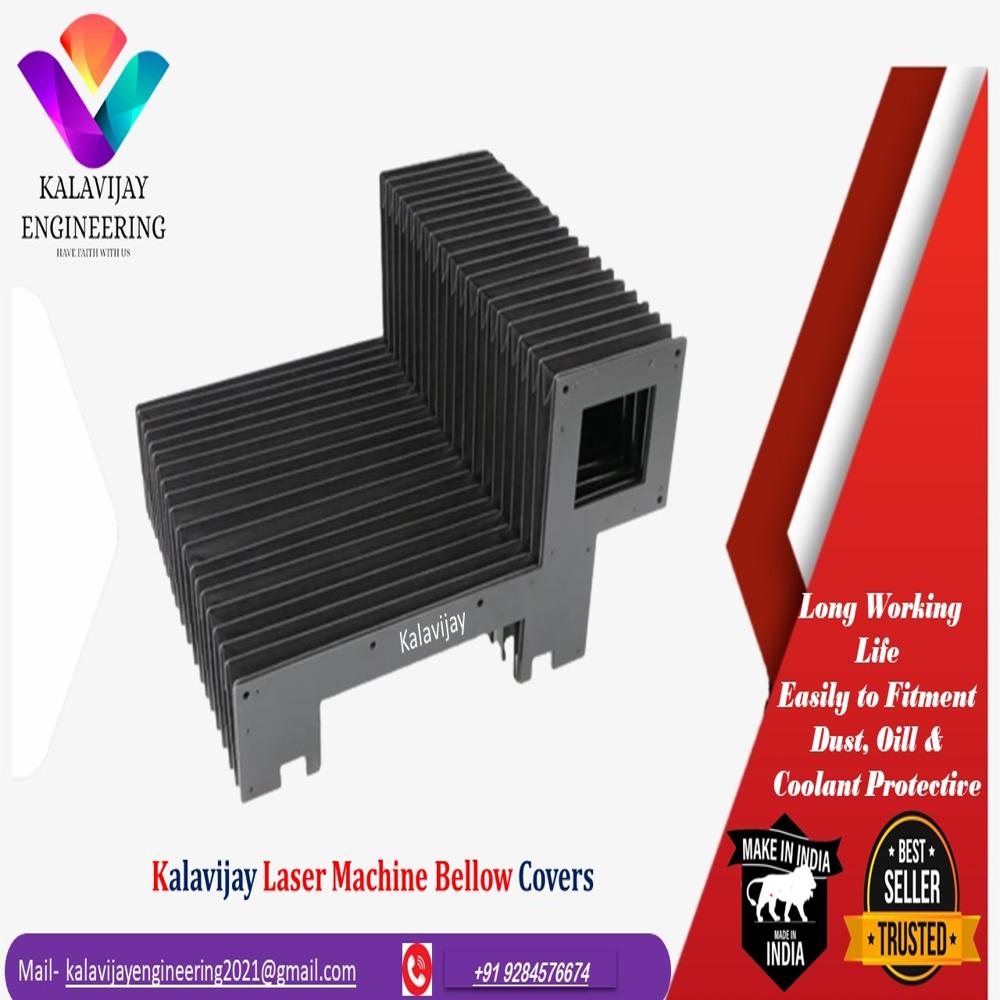

- Laser Machine Bellow Covers
- Dust, Coolant, Chips protection
- Other
- 80C
- Polish
- Atmospheric/Low Pressure
- Accordion Bellow
- Square
- End Flange
- Black
- Yes
- CMM (Coordinate Measuring Machine) Protection
- Velcro/Hook & Loop Optional
- 1:7 Foldable/Extendable
- Yes
- Bolt-On/Clamp Fixing
- High
- Yes
- 0.8 mm - 1.5 mm
CMM Machine Bellow Trade Information
- Cash in Advance (CID)
- 100 Number Per Month
- 3 Days
- All India
Product Description
CMM bellows are engineered to be lightweight to avoid adding mechanical resistance (drag) or vibration that could disturb delicate probe measurements.
- Materials: Typically made from thin, high-tensile materials such as polyurethane-coated polyester (approx. 0.16mm thickness) or nylon fabric. Some industrial variants use rubber, PVC-coated fabric, or even stainless steel.

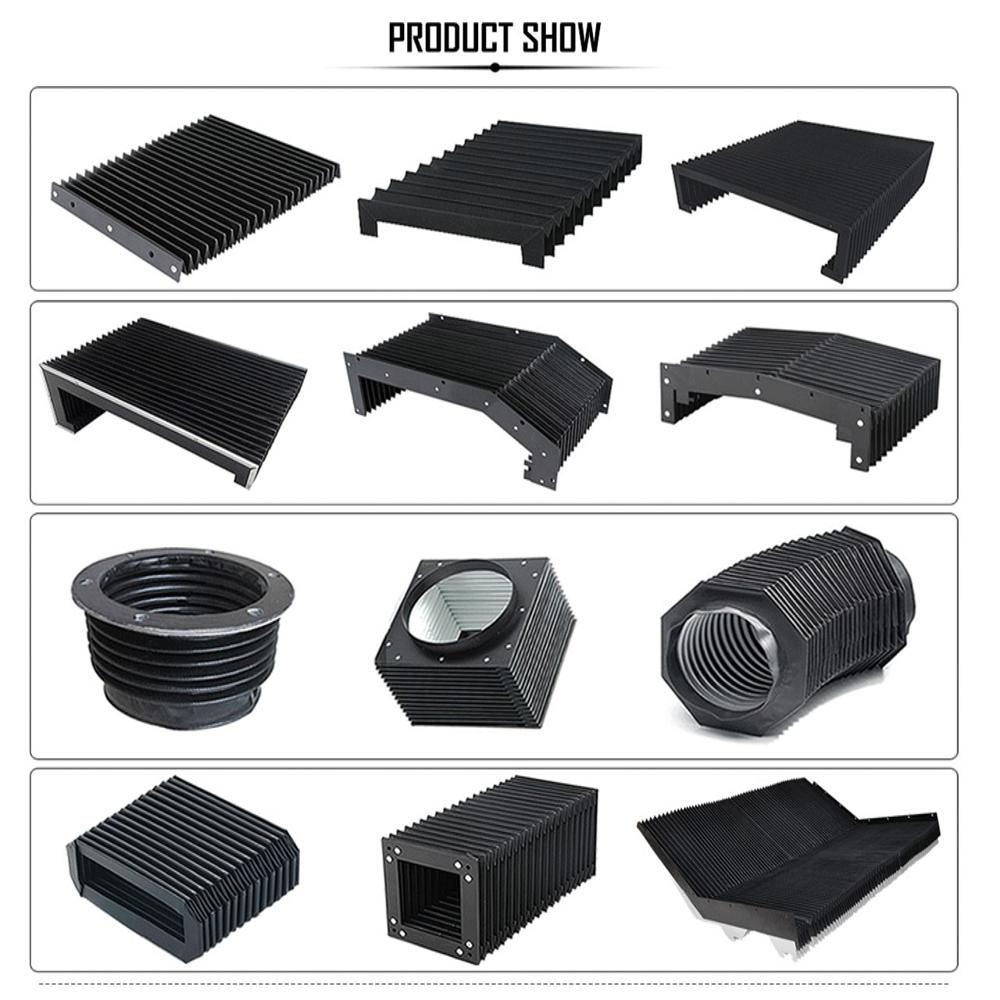

- Shapes: Common configurations include C-Type (most popular for rails), rectangular, round, and square.
- Construction: Often manufactured using thermal welding or high-frequency (HF) welding to ensure they are leak-proof and durable.
- Temperature Resistance: Standard bellows typically withstand temperatures from -10C to 70C, though specialized versions can handle up to 500C for high-heat environments.
Primary Functions
- Contamination Protection: Acts as a barrier against fine dust, mist, and metal shavings that can wear down bearings or cause measurement errors.
- Accuracy Maintenance: By facilitating smooth thermal expansion and contraction, bellows help the machine maintain its calibrated precision despite temperature fluctuations.
- Extended Lifespan: Protects internal drive systems and sensors, reducing maintenance costs and downtime.
Selection Considerations
When choosing or replacing a CMM bellow, consider the following:
- Drag & Friction: High-precision machines require "minimal drag" bellows to ensure the probe movement remains ultra-smooth.
- Axis Travel: Bellows must be custom-tailored to the specific X, Y, or Z-axis travel distance to prevent over-extension.
- Retrofitting: Many bellows are designed to be easily removable or retrofitted onto existing equipment without major disassembly
Durable Protection for CMM and Laser Machines
Engineered to serve as a resilient shield, our CMM Machine Bellow counters dust, coolant, and chips in demanding industrial environments. Its UV and oil resistance ensure a long operating life, while the robust structure endures regular movement. This means your machines enjoy extended operational reliability without frequent maintenance interruptions.
Customizable Solutions for Every Application
The bellow's design accommodates diverse industrial needs, offering customizable sizes, mounting styles, and end flanges based on specific machine requirements. With flexible closure methods and a wide range of thicknesses, it seamlessly integrates with existing setups. This customization guarantees optimal fit and function regardless of your machine's dimensions or operating conditions.
Advanced Construction and Easy Installation
Manufactured using hot press molding and completed with a polished surface, the bellow's construction ensures both strength and aesthetic appeal. Its expandable, accordion-style design allows for easy folding and extension, while bolt-on or clamp fixing options simplify the installation process and provide a secure, reliable fit.
FAQ's of CMM Machine Bellow:
Q: How does the CMM Machine Bellow enhance equipment protection?
A: The bellow acts as a physical barrier against dust, coolant, and metal chips, safeguarding sensitive CMM and laser machine components. Its high tear strength and resistance to oil and UV exposure enable it to perform effectively in harsh industrial settings, thereby prolonging equipment life and minimizing maintenance needs.Q: What closure and mounting options are available for this bellow?
A: Depending on your setup, you can choose from Velcro/hook & loop closure for quick fastening or opt for bolt-on or clamp fixing for a secure, fixed installation. This flexibility allows you to adapt the bellow for various machine configurations and access requirements.Q: When should I consider replacing my CMM Machine Bellow?
A: Replacement should be considered when there are visible signs of wear or tear, reduced expansion capability, or persistent leaks of dust or coolant into protected areas. With its high tear strength and robust construction, this bellow generally offers extended service life before needing replacement.Q: Where is this bellow typically used?
A: This bellow is specifically designed for Coordinate Measuring Machines (CMMs) and laser machines, but its versatile protective properties make it well-suited for other industrial environments where dust, coolant, and chip protection is critical.Q: What is the process for customizing the bellow to fit my equipment?
A: We offer full customization in terms of size, mounting style, thickness, color, and flange design. You can provide your machine's specific measurements and requirements, and the bellow will be manufactured accordingly for a precise fit and optimal protection.Q: How does the expansion ratio benefit industrial applications?
A: With an expansion ratio of 1:7, the bellow can be significantly extended or folded without compromising its integrity. This flexibility is ideal for machines with moving parts, ensuring consistent protection throughout their range of motion.Q: What are the key benefits of using a bellow with high UV and oil resistance?
A: High UV and oil resistance ensures the bellow maintains its strength and durability even in challenging operational environments. It resists degradation from sunlight and industrial fluids, resulting in longer service intervals and dependable performance.Tell us about your requirement
